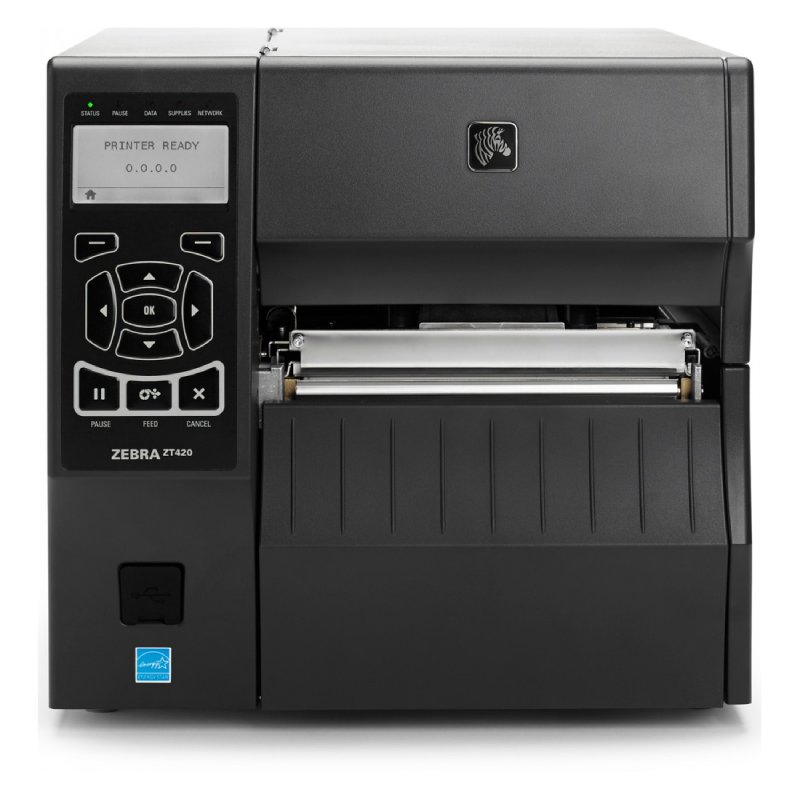

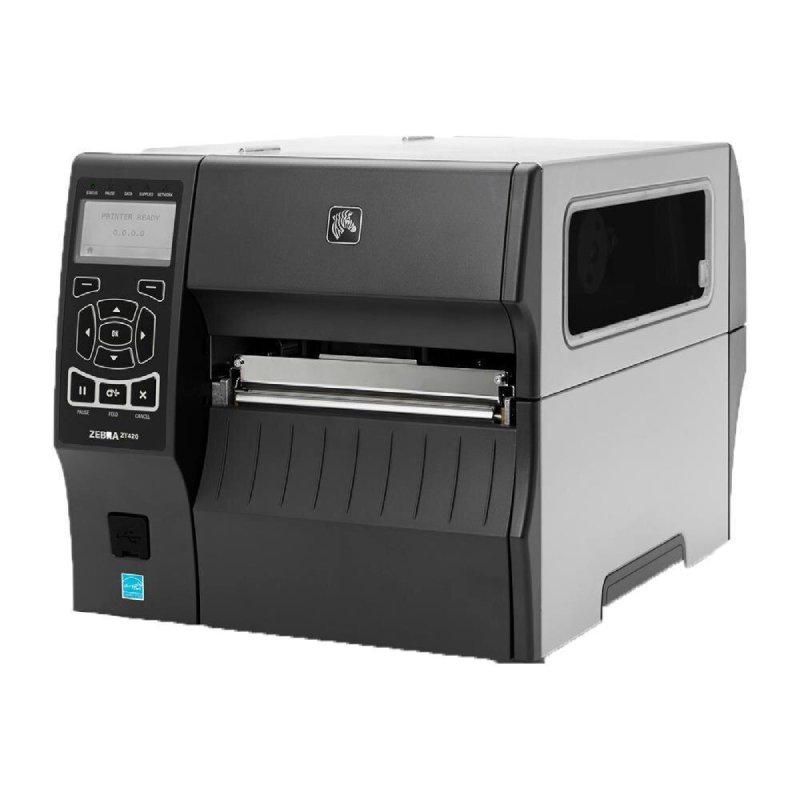

Zebra industrial barcode printer ZT420
Zebra ZT400 comes in two configurations – ZT410 – for printing labels with a maximum width of 4.09 inches / 104 mm and ZT420 – for labels up to 6.6 inches / 168 mm. Possible resolutions are three – 203, 300 and 600 dpi (available only for ZT410). Optionally, UHF RFID is offered to improve asset tracking capabilities.
The Zebra ZT400 has exceptional versatility and the ability to be modified according to changing business requirements.
The printer has the following features:
- Numerous connectivity options: standard serial, USB, Bluetooth 2.1 and Ethernet ports, two additional communication ports and optional parallel and wireless 802.11 a / b / g / n
- Maximum print speed of 356 mm/s
- ZPL and EPL programming languages
- LCD display
A fully metal body and a foldable lid that makes the printer suitable for use even in confined spaces and reduces the space required
Zebra Link-OS – an innovative software environment with applications that enhance the printer’s capabilities and make it very easy to integrate with existing processes as well as managing from different locations.

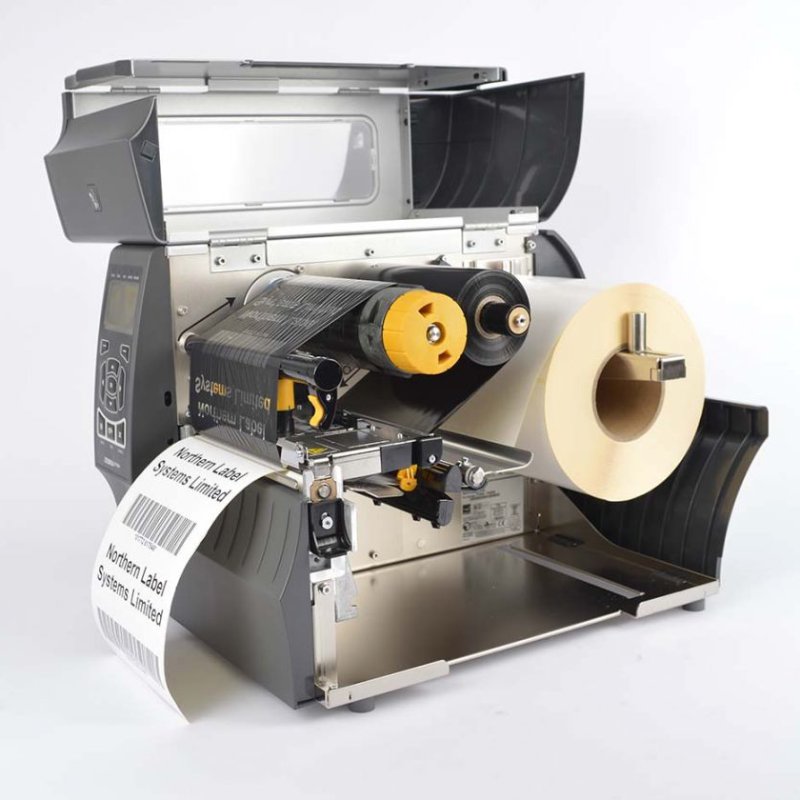

Working with Zebra ZT400 is extremely easy and intuitive. Consumable refilling takes place sideways, minimizing the possibility of confusion and entanglement of ribbons and labels. There are several additional lights inside the printer to help replace the consumables in poorly lit rooms.
| Printing features | |
| Printing method | Thermal direct; Thermal transfer |
| Resolution | 203 dpi; 300 dpi (optional) |
| Max. printing speed | 305 mm / sec |
| Max. printing width | 168 mm |
| Labels | |
| Max. width | 178 mm |
| Max. outer roll diameter | 203 mm |
| Label thickness | 0.058 mm – 0.25 mm |
| Type | Roll-fed, fanfold paper, Die cut labels, continuous paper, labels with black mark, labels with notches |
| Thermal transfer ribbon | |
| Width | 51 mm – 174 mm |
| Standard length | 450 meters |
| General features | |
| Memory | 512 MB Flash (64 MB usable), 256 MB RAM (4 MB usable) |
| Indication | LCD display |
| Programming language | ZPL, ZPL II, EPL, XML-enabled printing |
| Communication | USB 2.0, RS-232 serial port, 10/100 Ethernet,Bluetooth 2.1, USB Host |
| Printer information | |
| Case | Metal casing, keyboard |
| Temperature when working | Thermal transfer: 5° – 40° C; Thermal direct: 0° – 40° C |
| Storage temperature | -40° to 60° C |
| Humidity | 20% – 85% |
| Physical characteristics | |
| Dimesions | 337 mm (W) x 324 mm (H) x 495 mm (L) |
| Weight | 18.14 kg |
| Options | |
| Parallel (Bi-directional interface)Wireless: ZebraNet Printer Server 802.11 a/b/g/nRFIDKDUCutterPeel-Off (Dispenser) |
